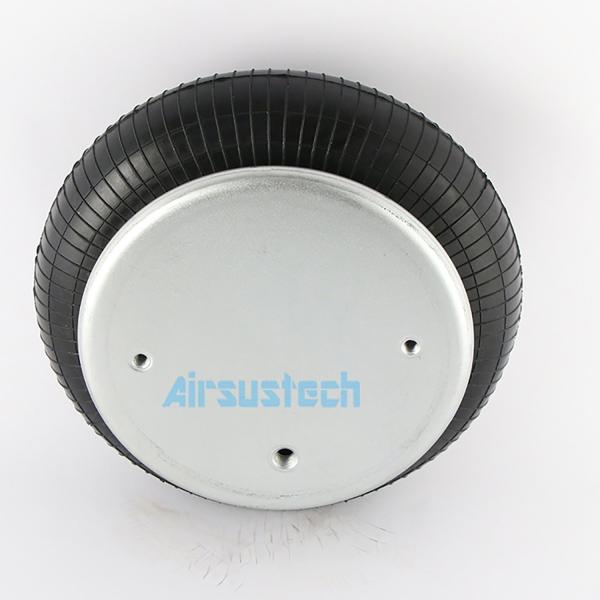

    Goodyear 1B12-300 Helper Air Spring Contitech FS 330-11474 Convoluted Air Bellow

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B 5330
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Goodyear 1B12-300 Helper Air Spring Contitech FS 330-11474 Convoluted Air Bellow

    Goodyear 1B12-300 Helper Air Spring Contitech FS 330-11474 Convoluted Air Bellow


    Product Introduction


    Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. The air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.


    OEM Cross References

    Firestone:W01-358-7008
    Firestone: W01 358 7008
    Firestone: W013587008
    Contitech: FS 330-11 474
    Contitech: FS 330 11 474
    Contitech: FD 33011474
    Goodyear: 1B12-300
    Goodyear: 1B12-313
    Triangle: 6374/4474
    Holland: 90557226



    The Detailed Specifications


    The Max. Diameter325mm
    Air hole/air inlet1/4 N P.T.F.
    Working strokemaximum 160 mm to minimum 55 mm
    Top plate screw (nut) teeth2 x 3 / 8-16UNC
    Bottom plate screw (nut) teeth2 x 3 / 8-16UNC
    Top cover diamete9.00 inches / 231 mm
    Bottom cover diameter9.00 inches / 231 mm
    Screw center distance157.5 mm
    The air hole distance between the nuts73 mm


    Pneumatic application-static characteristic values
    Force F[KN]
    Pressure p [bar]345678Vol. V [l]
    Height H[mm]13010.714.217.821.825.429.07.0
    12011.915.719.623.827.831.86.3
    11012.716.921.125.830.134.45.8
    10013.618.122.727.632.136.75.6
    9014.419.224.029.134.038.95.3
    8015.020.225.230.535.540.64.9
    7015.520.926.231.636.942.14.3
    6016.021.627.132.638.043.33.9



    The Reated Pictures


    Convoluted Airsustech Rubber Air Spring Cross 1b12-300 Goodyear Helper Bag
