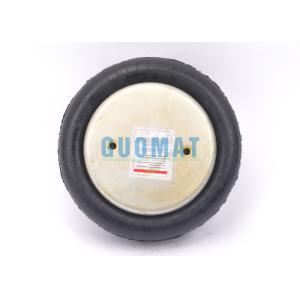

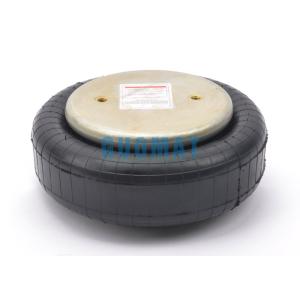

    1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B9X5
    Certification : ISO/TS16949:2009
    Price : $49.9-59.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag

    1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag


    Product Details

    ItemValue
    Product NameIndustrial Air Spring
    Warranty1 Year
    Place of OriginGuangDong China
    Brand NameGUOMAT
    CertificationISO/TS16949:2009
    Model No.1B9x5
    ConditionNew
    Other NameConvoluted Rubber Air Spring

    Cross Information

    Goodyear Part Number: 1B9-202

    Goodyear Part Number: 1B 9-202

    Goodyear Part Number: 1B9 202

    Goodyear Part Number: 1B9202

    Goodyear Bellows Number: 578913201

    Goodyear Bellows Number: 578 91 3 201

    Goodyear Bellows Number: 578-91-3-201

    Enidine Part Number: YI1B9-202

    Enidine Part Number: YI 1B9-202


    Goodyear 1B9-202 Technical Data

    Air Port Thread Diameter: 1/4 in
    Air Port Thread Standard: UNC
    Air Port Thread Type: 1/4 UNC
    Bumper Type: None
    Diameter at 100 psi: 11 in
    End Plate Diameter: 6.4in
    Force At Max Stroke At 100 Psi: 2850 lbs
    Height Range: 4-1/2 to 5 in
    Load Range at 100 psi: 3200 to 3900 lbs
    Spring Style: Single Convolute
    Stroke: 2.90 in
    System Natural Frequency: 2.50 Hz
    Tap Spacing: 3-1/2 in


    Goodyear Single Bellow Air Springs

    Type: Single Convoluted Type Air Spring
    Goodyear NumberTop Plate Hole/Stud QtyBottom Plate
    Hole/Stud Qty
    Top Plate
    Dia.
    Bottom Plate
    Dia.
    Collapsed
    Height
    FlexmemberPistonPiston Type
    1B12-30132992.6578-91-3-301--
    1B12-30532992.6578-91-3-301--
    1B14-3585411.311.32.3578-91-3-352--
    1B14-3505411.311.32.5578-91-3-351--
    1B14-3515411.311.34.18578-91-3-351--

    We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
