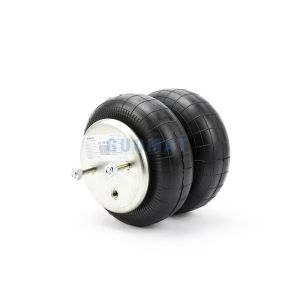

Goodyear 2B9-250 with Two Pillars Stick Nuts Actuators on Transfer Tables Lift Bag​

GUOMAT 2B9-250 Specifications and Technical Data

Firestone Part Number: W01-358-6943 / W013586943 / W01 358 6943

Compressed Height: 3.12 inches /

Top Plate Number: 3101

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Piston Number: 3090

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 79 mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number: 20-2

Goodyear Part Number: 2B9-250

Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

Triangle Part Number: 4426

Triangle Bellows Number: 6332

Watson & Chalin #: AS-0041

Bellows NO.: 20-2

Order Number: W01-358-6943

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº

Goodyear: 2B9-250 Cross others OEM

Other kinds of FD 200-25 that GUOMAT have:

GUOMAT Air Spring has many kinds of air spring and Suspension Air Spring

GUOMAT Air Spring produces Suspension Air Spring, Industrial Air Spring, Truck Air Springs, Bus Air Spring, Mercedes Air Suspension, BMW Air Suspension Parts, Audi Air Suspension Parts, Land Rover Air Spring, Lincoln Air Bag, VW Air Shocks, Air Suspension Compressor, Rubber Air Spring mainly for punching press machine, Air Spring Kit to combine the complete air spring strut, Cab Air Shock Absorber for the driver’s cabin and seat, Japanese series truck Air Spring Cushion and so on.

GUOMAT offers the high quality of and the best price the auto parts and equipment air spring. GUOMAT has a professional team to ensure quality.

Description convolution/ convoluted air spring

convoluted air spring is a bellows style GUOMAT air spring. The bellows air springs have one, two, or three convolutions in the flexible member. This dual complex air bags are often used as a lifting spring or shaft trucks and trailers, do an air spring, also as an actuator or insulator in the industrial and commercial applications and devices. The specifications will vary on your 2B9-250, but double convoluted GUOMAT bags are found in crimped design as well as sleeve type bellows. They will provide similar features and functions but sleeve type of retainer permanent connection with the final between retainers and external replaceable parts plait ring.

Details Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]
