    Double Convoluted Air Spring Bag W01-358-6902 Firestone 2B9-201 Goodyear Replacement

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : W01-358-6902
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Double Convoluted Air Spring Bag W01-358-6902 Firestone 2B9-201 Goodyear Replacement

    Double Convoluted Air Spring Bag W01-358-6902 Firestone 2B9-201 Goodyear Replacement


    Product Specification


    ItemValue
    OEM.NO.W01-358-6902
    TypeAir Spring
    Warranty12 Months
    Truck ModelHeavy Duty Truck
    ColorBlack
    Place of OriginGuangzhou,China
    CertificationISO/TS16949:2009
    MaterialRubber+Steel
    PackingNeutral Packing
    MOQ1 Pcs
    QualityHigh-Quality
    PositionAuto/Truck parts
    ApplicationAuto Suspension Systems

    Firestone Double Convoluted Air Spring Data


    Top Cover Plate Diameter:160mm

    Bottom Cover Plate Diameter:160mm

    Gas Hole / Air inlet:1/4NPTF

    Rubber Bellows Natural Diameter:224mm

    Rubber Bellows MAX Diameter:251mm

    The Working Stroke:MAX 274 mm to MIN 95 mm

    Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

    Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

    Screw Center Distance of Top Cover Plate:89mm

    Screw Center Distance of Bottom Cover Plate:89mm

    Screw And Gas Hole Distance of Top Cover Plate:44.5mm


    OEM NO.

    Firestone: W01-358-6902,W013586902,6902

    Contitech: FD 200-19 310

    Goodyear :2B9-201

    Taurus:KF218-6902


    Manufacturer No.

    Granning:4848

    Hendrickson : S2630

    R&S Truck: 1027505

    Ridewell :1003586902C

    Suspensions: 2000-42

    Watson&Chalin: AS-0002

    American Carrier


    Packing & Delivery


    Package

    Brown Carton Box


    Shipping

    1.By Sea,By Air,By DHL/UPS/EMS/Fedex

    2.Delivery time is 2-8 working days.



    Company Profile


    Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

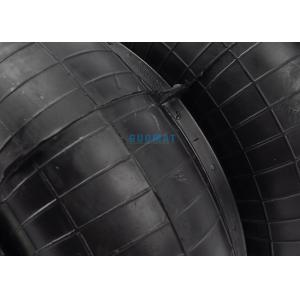

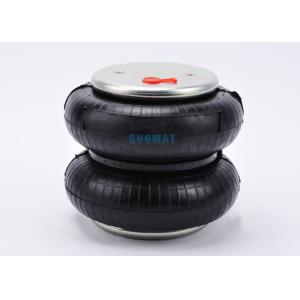

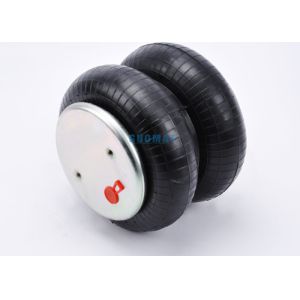

    Product Picture


    Double Convoluted Air Spring Bag W01-358-6902 Firestone 2B9-201 Goodyear ReplacementDouble Convoluted Air Spring Bag W01-358-6902 Firestone 2B9-201 Goodyear ReplacementDouble Convoluted Air Spring Bag W01-358-6902 Firestone 2B9-201 Goodyear ReplacementDouble Convoluted Air Spring Bag W01-358-6902 Firestone 2B9-201 Goodyear Replacement

    FAQ



    1. Are you a Manufacture factory?

    A:Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.


    2. What is your main products?

    A:Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.


    3. Is the sample available?

    A:Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.


    4. What is your warranty term?

    A:There is a 12months warranty for our export products has run out from the date of the shipment.If warranty .


    5. Can i use my own logo and design on products?

    A:YES,OEM is welcomed.


    6. I can not find out the items what i want from your website, can you offer the products i need?

    A:YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
