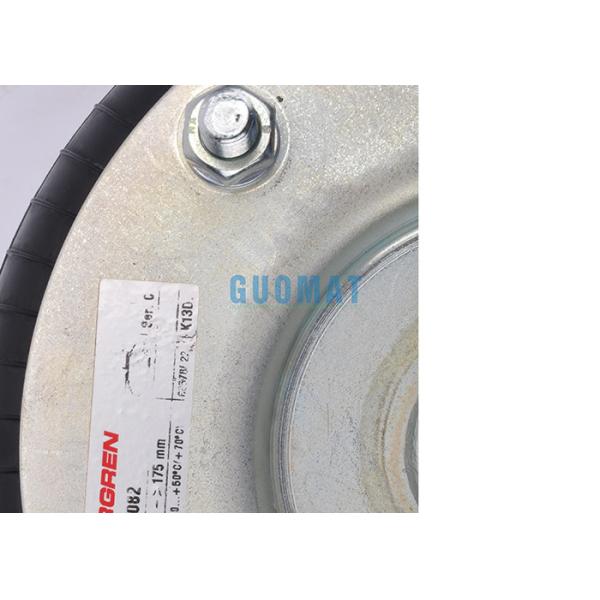

    FD 138-18 DS ContiTech Double Convolution Air Actuator M/31082 Maximum Diameter 220mm

    FD 138-18 DS ContiTech Double Convolution Air Actuator M/31082 Air Spring Shocks


    Description of Norgren M/31082:


    Norgren Imported M/31082 this kind of double Convoluted Air Spring which is produced by Norgren. It can replace bellows Number 8"X2 ; M/31082 air spring not only use in truck and trailer,but also as Vibratory conveyors,such as Large drying machines,Centrifugal separators,Coordinate measuring tables and machinery and Commercial laundry machines.


    Sizes of Norgren M/31082:


    ❶Nut/blind nut
    Top plate screw (nut) teeth: 4 X M10

    Screw (nut) teeth of the bottom cover plate: 4 x M10

    ❷Air hole/air inlet/air fitting
    Air hole/air inlet: G1 / 2

    ❸cover
    Top plate diameter (width): 184 mm

    Diameter of the bottom cover (width): 184 mm

    Material top and bottom plate: steel

    Bell rubber bellows
    Maximum diameter at 7 bar: 225MM

    Rubber bellows stroke: 75mm-225m

    ❺Bumper block/bumper block
    No bumper
    ❻Belt loop/Belt loop
    Attached belt: a belt


    Type

    Order No.

    Rubber bellows only

    66501

    with dismountable plates, G1/2 air inlet

    66505


    Min. pressure 0 bar
    Return force to min height ≤ 300 N
    Overall weight 3.5 kg


    Vibration isolation – dynamic characteristic values

    Design height H: recommended 200mm, minimum 180mm

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Force (Load) [kN]

    3.9

    5.3

    6.7

    8.2

    9.7

    11.3

    Spring rate [N/mm]

    76

    97

    118.5

    140

    161

    181.5

    4.1

    Natural frequency [Hz]

    2.2

    2.2

    2.1

    2.1

    2.1

    2.0


    Pneumatic application – static characteristic values

    Force F [kN]

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Height H [mm]

    220

    2.9

    4.03

    5.16

    6.41

    7.65

    8.98

    4.3

    200

    3.86

    5.27

    6.68

    8.21

    9.73

    11.3

    4.1

    150

    5.9

    8

    10.1

    12.4

    14.7

    16.9

    3.2

    100

    8.2

    10.9

    13.7

    16.6

    19.4

    22.4

    2


    Norgren M/31082 Technical parameters Medium:


    Compressed air, without lubrication Working pressure: up to 8 bar Working temperature: -M / 31000 is 40 ° C to + 70 ° C. Important note: The construction of this air bellows enables operation at an angle of 5 ° to 25 ° Dietop and bottom plates may not be aligned depending on the height of the bellows and the number of turns.


    To avoid damage, mechanical stops must be used in both end positions.In order to bring the air bellows back to its minimum height, an external restoring force must be applied.The thrust depends directly on the height of the bellows: with increasing height, the thrust decreases.Since the outside diameter changes during operation, there must be sufficient clearance around the air bellows.


    Other Norgen air springs models:


    ModelNominal Ø (inch) x convolutionsMaximum stroke (mm)Air Port size
    M/310212 3/4“ x 120G1/4
    M/310222 3/4“ x 245G1/4
    M/310232 3/4“ x 365G1/4
    M/310414 1/2“ x 1140G3/8
    M/310424 1/2“ x 2280G3/8
    M/310616" x 1155G1/2
    M/310626" x 2155G1/2
    M/310818" x 195G3/4
    M/310828" x 2185G3/4
    M/310919 1/4” x 1105G3/4
    M/310929 1/4“ x 1230G3/4
    M/3112112" x 1105G3/4
    M/3112212" x 2215G3/4
    M/3112312" x 3315G3/4
