    Norgren PM/31082 Industrial Air Spring 8" 185mm 8X2 Double Convoluted

    Ask Lasest Price
    Brand Name : Norgren
    Model Number : PM/31082
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    Price : US$1.00-US$299.00/PC
    • Product Details
    • Company Profile

    Norgren PM/31082 Industrial Air Spring 8" 185mm 8X2 Double Convoluted

    Norgren Imported PM/31082 Industrial Air Spring 8" diameter 185mm stroke 8X2 Double Convoluted

    Description of Norgren PM/31082:


    Norgren Imported PM/31082 this kind of double Convoluted Air Spring which is produced by Norgren. It can replace bellows Number 8"X2 ; PM/31082 air spring not only use in truck and trailer,but also as Vibratory conveyors,such as Large drying machines,Centrifugal separators,Coordinate measuring tables and machinery and Commercial laundry machines.


    PM/31082 Specifications and Detail Technical Parameters:

    Operation: Single acting
    Stroke length: 185 mm
    Port size: G3/4
    Nominal diameter: 8"
    Number of convolutions:

    Nut / Blind Nut
    Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

    Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : G1/2

    Cover Plate
    Top Cover Plate Diameter (Width): 184 mm

    Bottom Cover Plate Diameter (Width): 184 mm

    Material top and bottom plate:Steel

    Rubber Bellows
    Diameter max at 7 bar:225MM

    Stroke of Rubber Bellows:75mm-225m

    Bumper block / Buffer block
    Without Bumper Block
    Girdle Hoop / Girdle Ring
    With Girdle Hoop :One Pieces of Girdle Hoop

    max force at stroke 25 mm and 5 bar 12,3 kN
    Rubber material Standard up to 70°C natural rubber

    Medium:Compressed Air
    Port size:G3/4
    Operation:Single acting
    Operating pressure:0 ... 8 bar
    Operating temperature:-30 ... 50 °C
    Stroke length:185 mm
    Theoretical force:16500 N
    Range:PM/31000


    Other kinds of model air bellows:

    W01-R58-4081 (2 3/4" x3)
    W01-R58-4051 Dunlop Style 4,5 " x 2
    W01-R58-4052 - (6" x1 steel)
    Firestone W01-R58-4057 - (10 x1 steel)
    Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
    Firestone W01-R58-4090 - 8"x2 Butyl
    Firestone W01-R58-4055 - 8x2 Steel
    Firestone W01-R58-4060 (12 x1 steel)
    Firestone W01-R58-4077 (12 x1 Herclor )
    Firestone W01-R58-4056 -8"x3 Steel
    Firestone W01-R58-4062 (12 x3 Steel)
    Firestone W01-R58-4065 (14 1/2 x3 Steel)
    Firestone W01-R58-4098 (14 1/2 x1 Herclor)
    Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
    Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
    Firestone W01-R58-4078 - (6 x1 Alu )
    Firestone W01-R58-4070 - (6 x 2 Alu )
    Firestone W01-R58-4053 - (6 x 2 Steel )
    Firestone W01-R58-4059 - (10" x3 steel)
    Firestone W01-R58-4054 - 8x1 Steel
    Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
    Spar Part Bellow 8"x2 W01-R58-4045
    Firestone W01-R58-4064 -14" 1/2 x2
    Firestone W01-R58-4063 -14 1/2 x1
    Bellow only 8" x 1 -- W01-R58-4085
    Firestone W01-R58-4048
    W01-R58-4080 - 2 3/4" x 2
    Firestone W01-R58-4060- 12" x2 steel
    Firestone W01-R58-4070 - (6 x 2 V2a )
    Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
    Firestone W01-R58-4050
    W01-R58-4080 - 2 3/4" x 1


    Norgren PM/31082 Technical parameters Medium:


    Compressed air, without lubrication Working pressure: up to 8 bar Working temperature: -PM / 31000 is 40 ° C to + 70 ° C. Important note: The construction of this air bellows enables operation at an angle of 5 ° to 25 ° Dietop and bottom plates may not be aligned depending on the height of the bellows and the number of turns.


    To avoid damage, mechanical stops must be used in both end positions.In order to bring the air bellows back to its minimum height, an external restoring force must be applied.The thrust depends directly on the height of the bellows: with increasing height, the thrust decreases.Since the outside diameter changes during operation, there must be sufficient clearance around the air bellows.

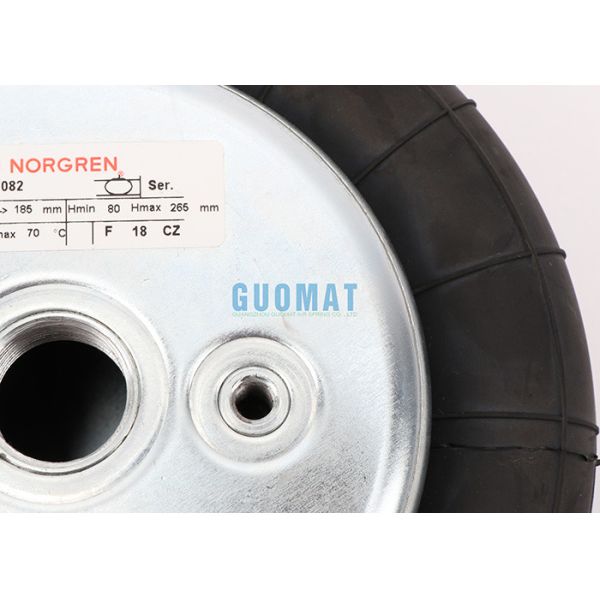

    Detail real photo 1 of Norgren PM/31082:


    Norgren PM/31082 Industrial Air Spring 8" 185mm 8X2 Double Convoluted


    Detail real photo 2 of Norgren PM/31082:


    Norgren PM/31082 Industrial Air Spring 8" 185mm 8X2 Double Convoluted


    Detail real photo 3 of Norgren PM/31082:


    Norgren PM/31082 Industrial Air Spring 8" 185mm 8X2 Double Convoluted
