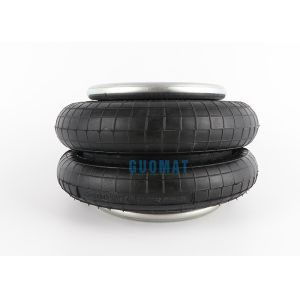

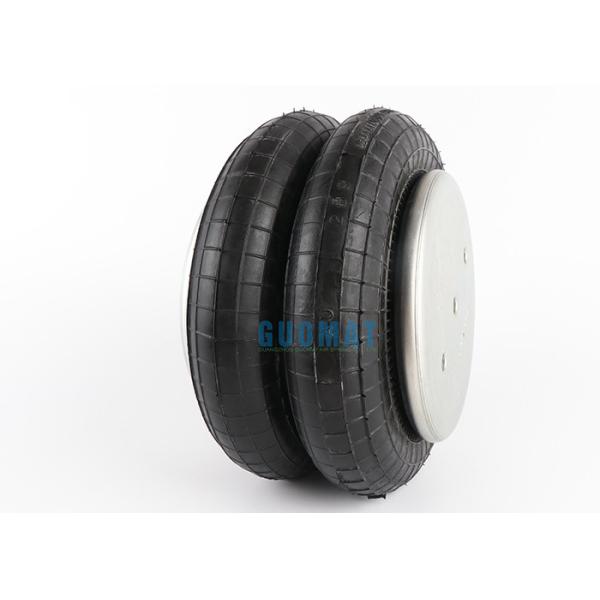

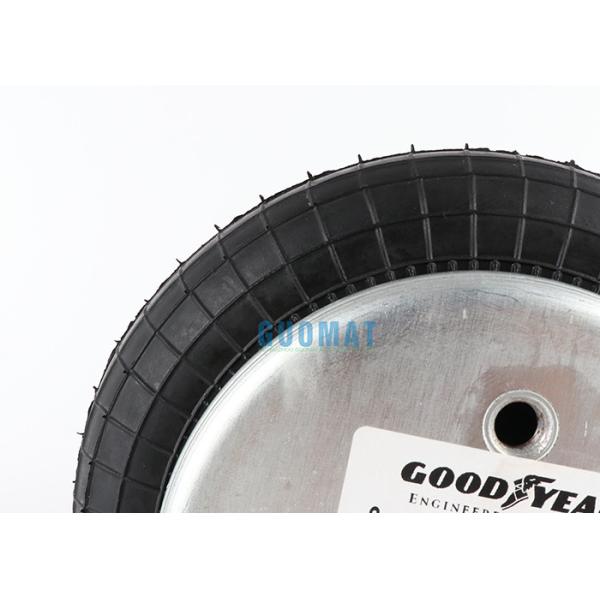

W013586940 FIRESTONE Air Spring Super Cushion Air Spring Goodyear 2B9-230 TRIANGLE 4450

OEM Original Equipment Manufacturer:

AUTOMANN
ABSP2B12R-6940

CONTI
64513
FD 200-19 450

FIRESTONE
6940

W013586940

TRIANGLE
4450

TRP
AS69400

Air spring supplier brand name ContiTech

Reference: 161296

Competitor/supplier ID: FD20019450

Air spring supplier brand name Goodyear

Reference: 578923202

Competitor/supplier number: 2B9230

Air spring supplier brand name Triangle

Reference: 6325

Competitor/supplier ID: 4450

Suspended supplier name: Histeer

Competitor/supplier ID: 10305

Suspension supplier name: Langes

Firestone Trim name: w013586940

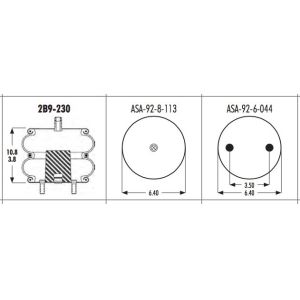

Specifications and Technical Data

Compressed Height: 3.12 / 79mm

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX1/212UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter 224 mm

The Working Stroke : MAX 274 mm to MIN 95 mm

Air Fitting: 1/2 NPTF or 3/8 NPTF

Firestone Bellows Number:20

Goodyear Part Number:2B9-230/ 2B9230 / 2B9 230

Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202

How to Calculation For Pneumatics, Such as

• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
