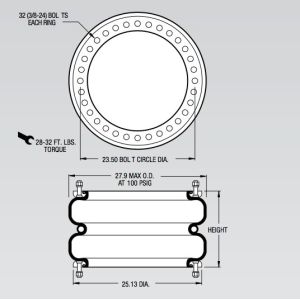

    Buy cheap W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS from wholesalers

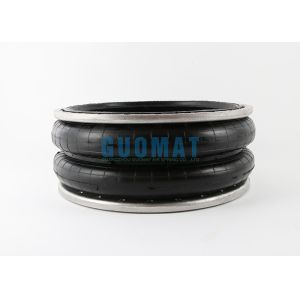

    Buy cheap W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS from wholesalers

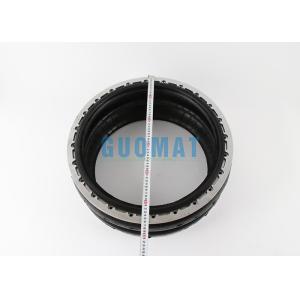

    • Buy cheap W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS from wholesalers
    • Buy cheap W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS from wholesalers
    • Buy cheap W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS from wholesalers
    • Buy cheap W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS from wholesalers
    • Buy cheap W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS from wholesalers

    W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B7230
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS

    W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS


    Industrial Triple Convoluted Air Spring Specifications

    Manufacturer Part NumberShort Description W01-358-7230, W013587230, WO1-358-7230, WO13587230Bead ring Type4
    Maximum Diameter @ 7 Bar (mm)707Dim# C (Bolt Circle Diameter mm)597
    Maximum Height (mm)84# of Bolts (each ring)32
    Maximum Stroke (mm)284Design Height (mm)381
    Minimum Usable Height (mm)3683 Bar (kN)78.5
    25 mm (kN)174.65 Bar (kN)132.9
    50% of Max Stroke (kN)1507 Bar (kN)187.9
    Maximum Stroke (kN)106.5Natural Frequency (@5 Bar)(fn(Hz)1.2
    Applicable Technigram1137 Hz97
    Material2-Ply, High Strength Cord13 Hz99.3
    25 Hz99.8



    Bellows type industrial air spring, double helix, effective area 2870cm square, maximum stroke 30cm, stud bolt installation, inch seal ring, high strength 175 PSI Max


    Maximum diameter @ 100 PSIG (inches)
    27.9
    Maximum height (inch)
    12.1
    Maximum stroke (inch)
    8.6
    Minimum usable height (inches)
    3.5
    80PSI force at 1 inch stroke (lbs)
    42500
    Force applied at 80 PSI in a 3-inch stroke (pounds)
    40000
    Maximum thrust for maximum stroke @ 80PSI (pounds)
    28160
    material
    2-layer high-strength cord


    GUOMAT 2B7230 Cross OEM

    GUOMAT: 2B7230
    Firestone:Style 215
    Two Ply High Strength Bellows

    Ribbed neck aluminum bead rings (equal spacing),
    17/8 bolts, nuts, washers
    W01-358-7230
    Ribbed neck aluminum bead rings (unequal spacing) 17/8 b,n,w
    W01-358-7301
    Ribbed neck aluminum bead rings (equal spacing) 11/4 b,n,w
    W01-358-7302
    Rubber bellows only
    Firestone W01-358-7912;
    Firestone W01 358 7912;
    Firestone W013587912

    Assembly weight ..................................................... 41.0 lbs.
    Force to collapse to minimum height (@ 0 PSIG) ... 160 lbs.


    W01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RSW01-358-7230 Firestone Air Spring Style 215 Two Ply Refer To Contitech FD 2870-30 RS


    Style NumberDesign HeightLoad (at Design Height) at:Natural Frequency% of Isolation at Forced Frequency
    ••40 PSIG (pounds)60 PSIG (pounds)80 PSIG (pounds)(@ 80 PSIG) fn(cpm)400 CPM %800 CPM %1500 CPM %
    DOUBLE CONVOLUTION
    219.53,0304,7506,54010592.698.399.5
    21-210.53,4605,3507,2809594.198.699 6
    233-211.253,4135,6317,6918995.098.899.7
    28**9.54,5907,0109,59010193.298.499.5
    203**9.57,21011,10014,9709793.798.599.6
    29**9.59,78014,86020,0609294.498.799.6
    2009.513,29020,39027,3309394.298.699.6
    21510.515,84024,14032,5508695.198.899.7
    248-211.030,83047,72063,8908395.598.999.7
